Case: 01 November 2017

Summary

Post-frontal open cell cumulus with a transition to closed cell behaviors

Description

This was a postfrontal open cell cumulus event featuring a frontal passage that happened the previous day. Low-level winds were light and from the north throughout this event. As the day processed into evening, this event was noteworthy as there was an apparent transition of the cloud field from a somewhat sparse open cell behavior towards one of a closed cell stratocumulus condition. The cloud echo top heights for this event were below the observed melting level.

Available assets

Standard ARM profiling assets, SEVIRI. SACR. RLPROF-FEX

Critical period: 09:00-15:00

Period with open cell cumulus clouds

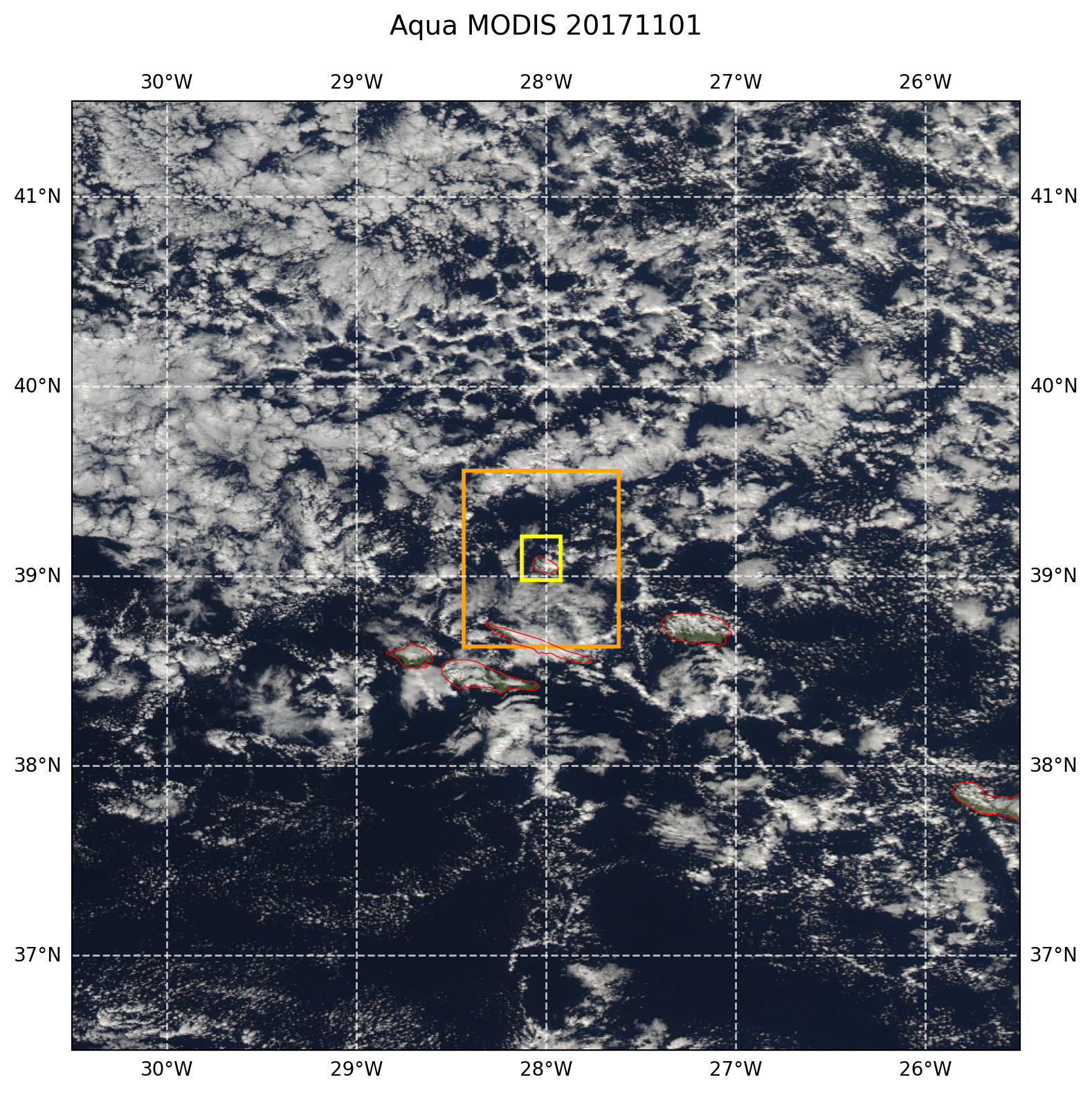

True color MODIS AQUA — Figure 53 True color afternoon MODIS AQUA image with overlaid LES domains. The image domain corresponds to the size of the model forcing domain.
