Case: 01 July 2018

Summary

Precipitating stratocumulus clouds primarily over the main ENA site

Description

This was the second part of a multi-day event, with this day featuring an extended stratocumulus event with relatively continuous cloud coverage in the vicinity of the ENA site and Azores islands. Boundary layer winds were light and from the north to northeast. Cloud echo top heights were observed at approximately 1.5 km AGL and deepened to 2.0 km throughout the daytime hours. The regional cloud field was less continuous however, with increasing breaks in the deck observed throughout this event regionally. Persistent higher clouds were observed by SEVIRI throughout this event over the ENA site.

Available assets

Standard ARM profiling assets, SEVIRI, SACR

Critical period: 00:00-15:00

Continuous stratocumulus coverage over the ENA main site

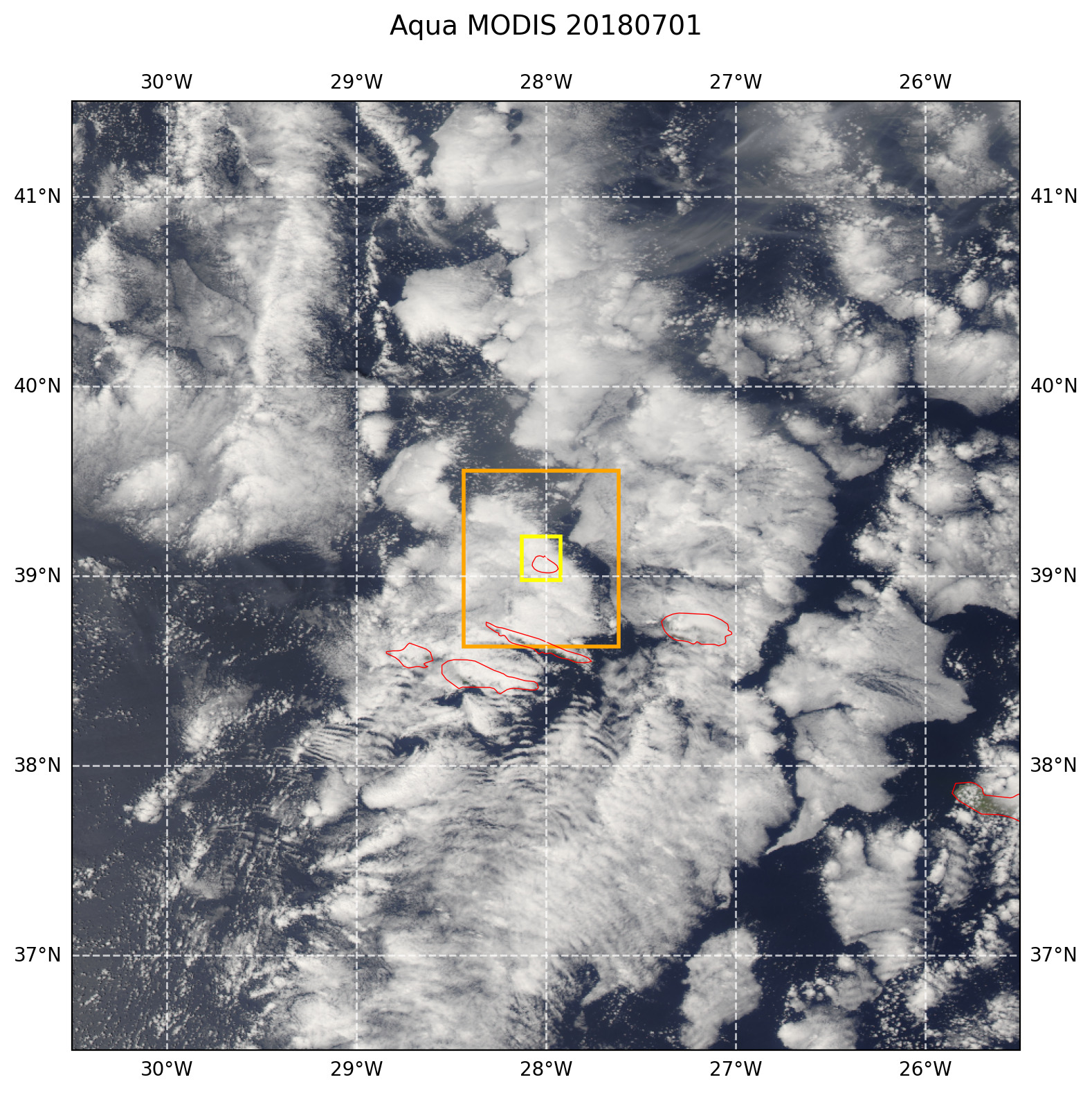

Figure 59 True color afternoon MODIS AQUA image with overlaid LES domains. The image area corresponds to the 5° region sampled for the larger forcing option. The yellow and orange boxes correspond to the sizes of the 25 km and 102 km LES domains, respectively.
